Product Description
The conical vacuum dryer's drying efficiency is 3-5 times that of the double cone vacuum dryer. It is especially suitable for mixing powders and granules with high hygiene requirements.
Working Principle

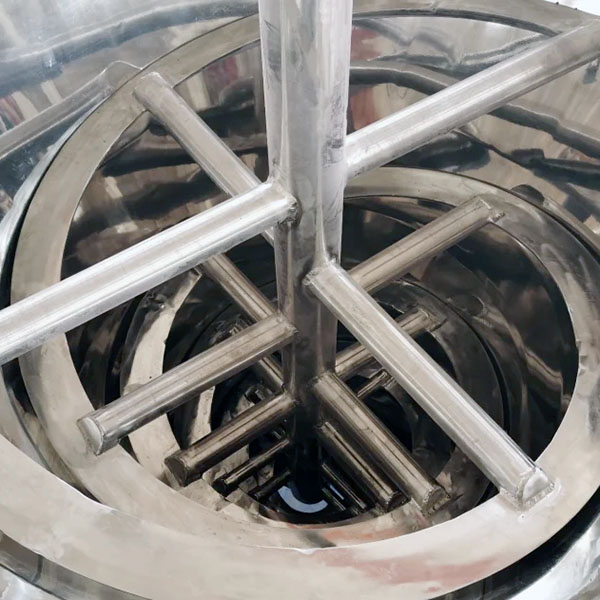

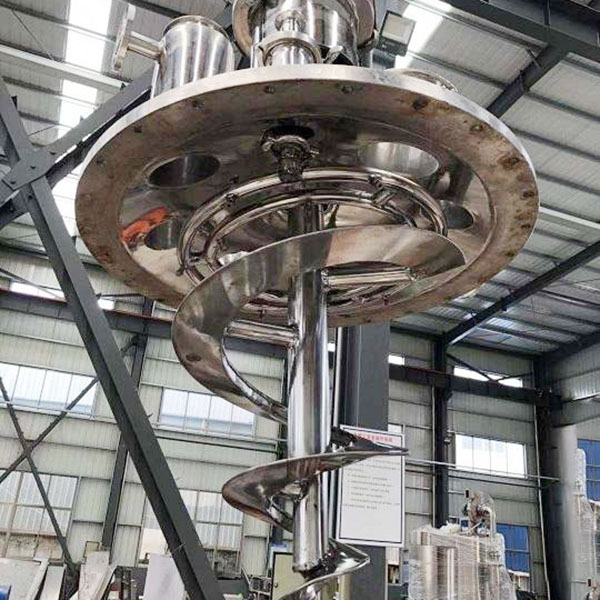

The spiral ribbon is used to rotate and lift the material, and the heat transfer medium is introduced into the conical jacket and hollow spiral at the same time. the heated material is lifted from the sides and falls from the middle, creating a rapid and continuous turnover. and at the same time, the moisture is vaporized, and pumped out by the vacuum pump.
Features and Benefits
Vacuum, positive pressure, or high-temperature operating conditions

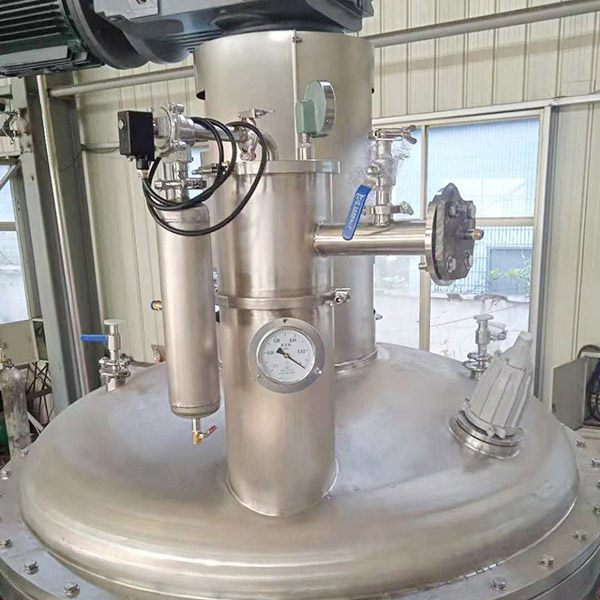

Pulse-jet filter devices prevent dust from overflowing
Spherical valve discharges, with reliable sealing and no material residue
Optional vacuum feeder to avoid manual feed dust flying.
CIP Rotary spray ball for online cleaning and sterilization
Optional high chopping for lump break.
Typical Application
Mixing and drying heat-sensitive, oxidized, volatile, toxic and crystal materials.
Technical Data
Model | LDG-100 | LDG-500 | LDG-1000 | LDG-1500 | LDG-2000 | LDG-3000 |
Total volume (L) | 100 | 1000 | 1000 | 2000 | 3000 | 5000 |
Working volume (L) | 300 | 600 | 900 | 1200 | 1800 | 3000 |
Heating area (M2) | 3.2 | 5.1 | 6.3 | 8.1 | 10.6 | 14.2 |
Motor power (kw) | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
Barrel pressure (Mpa) | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 |
Jacket pressure (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Working temperature (℃) | 20 -150 | 35 -150 | 35 -150 | 35 -150 | 35 -150 | 35 -150 |
Overall size (mm) | Ф700×1600 | Ф1300×2520 | Ф1400×3000 | Ф1640×3200 | Ф1860×3400 | Ф2350×4000 |
Gross weight (kg) | 500 | 900 | 1500 | 2200 | 2600 | 3700 |
Note:
Customized temperature and batch capacity according to user’s requirement.
