Product Description

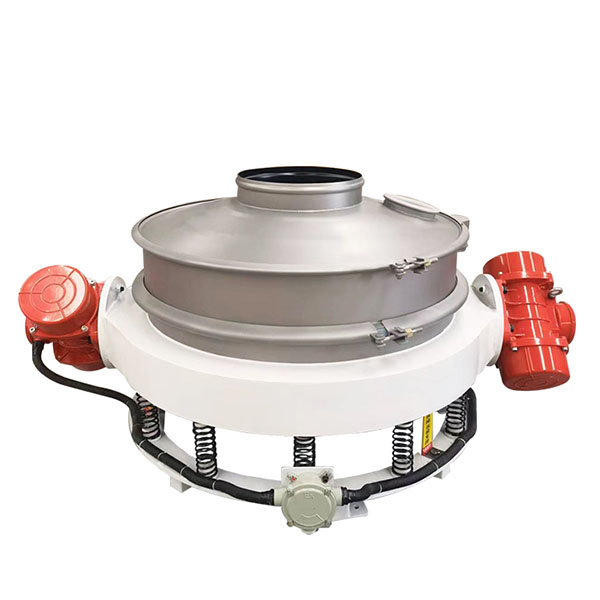

The round vibratory separator is a versatile and high-precision fine powder separator, which is typically applied in bulk solids and slurries grading, scalping de-dusting, and filtering.

Working Principle

The rotary vibratory separator generates a three-dimensional motion that enables the screening of fine particles. vertical vibration motor revolves rapidly with a centrifugal force that stimulates a sieve to move circularly. The materials on the sieve receive the impulse so that the sieve provides a throwing movement on screening surfaces. The undersized materials pass through the screen mesh while oversized frictions move outwards in a circular pattern & are discharged from the outlet.

Features and Benefits

Up to 3 decks and 4 fractions can be achieved simultaneously.

Dust-free operation and separate particles down to 500 mesh.

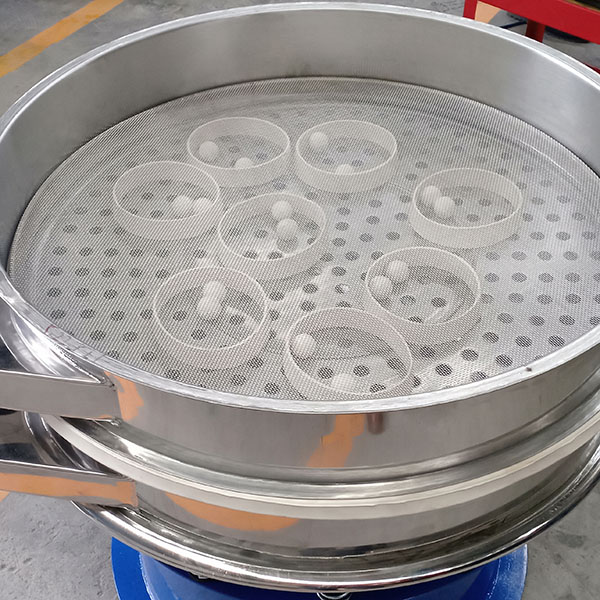

Anti-blinding bouncing ball, rotary brush, and ultrasonic device.

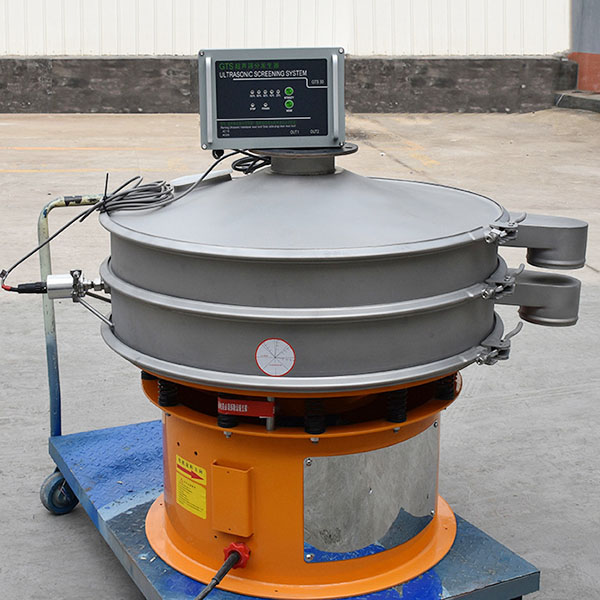

Ultrasonic anti-blinding systems eliminate clogging or blinding of wire mesh.

Design, Construction and Finish to Food and Pharmaceutical Specifications.

Round and compact design with flexible outlet positioning.

Typical Application

Scalping and classifying dry bulk materials, Liquid gravity filtering

Flour, starch, sugar, dairy powder, spices, sugar, instant coffee granules, cocoa powder, lactose, tea powder, cocoa powder, tea powder pharmaceutical granules and intermediates, casein, detergents, abrasives, resin, resin, additives, silicon carbide, calcium carbonate, pigments, PVC compounds cellulose, ceramic powder, metallurgy powder, polymer, refractory material, fruit juices, latex, paint, pulp and paper, ceramics pulp, etc.

Technical Data

Note:

All data provided is for guidance only and may be varied by the properties of materials.

We reserve the right to modify the design without notice.
