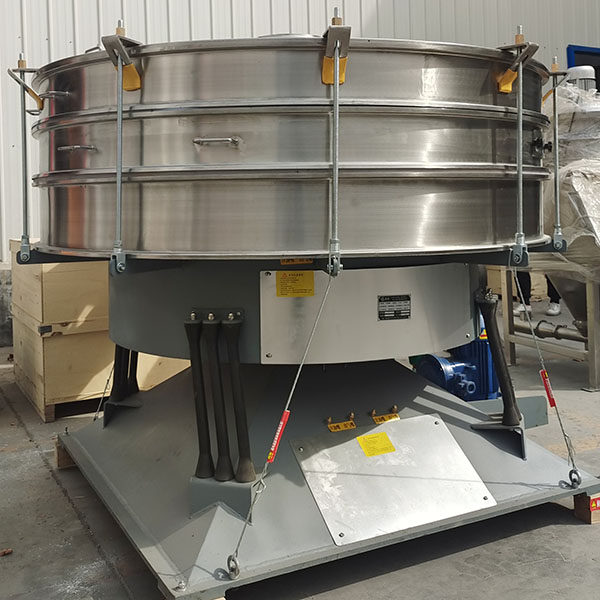

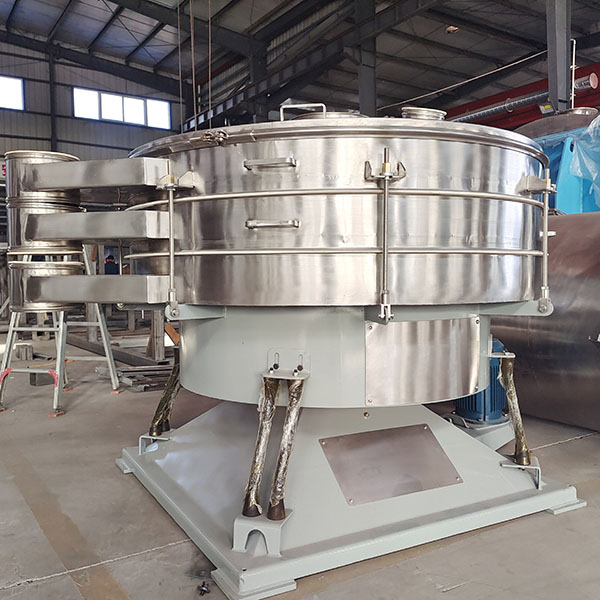

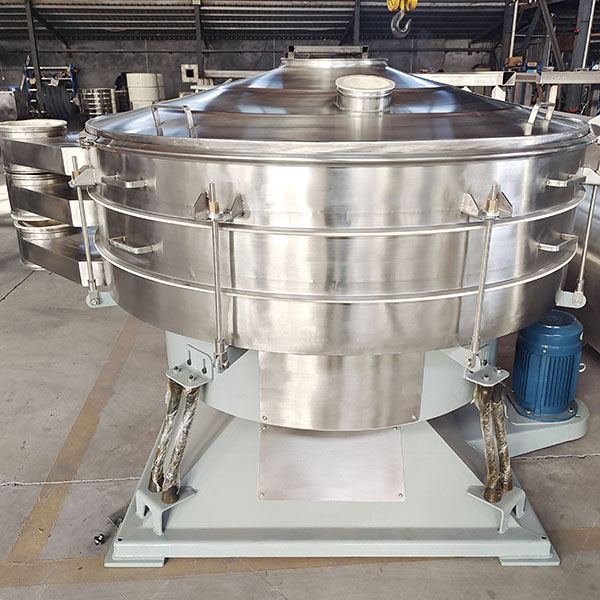

Product Description

The tumbler screening machine is an imitated hand screening that meets the needs of high volume and precision screening. The screening efficiency and working life are 3-5 times of a conventional round vibration sieve.

Working Principle

The tumbler screen generates a three-dimensional tumbling motion (elliptical movement) that enables the screening of fine & ultra-fine particles. The elliptical movement sets radial & tangential inclination. The screening material spreads out evenly on the entire surface from the center to the discharge port. The radial inclination makes the screening material move from center to outwards & tangential inclination makes the material move in a circular pattern, thus a spiral motion is achieved. The undersized materials pass through the screen mesh while oversized frictions move outwards in a circular pattern & are discharged from the outlet.

Features and Benefits

Up to 5 decks and 6 fractions can be achieved simultaneously.

Low acceleration prolongs the working life of the screen and mesh.

Classify dry powders and granular materials gently and effectively.

Ideal for screening low bulk density products fine particles.

Slow speed and three-dimensional elliptical movement for optimal screening.

Imitating manual screening, screening accuracy is as high as 90%~95%.

Typical Application

ideal solution for the gentle and precise separation of powder and granules

Flour, starch, citric acid, sugar, salt, vitamins, spices, tea, feed, fish meal, plastics, rubber, chemicals, fertilizer, metal powder, EPS, PVI, PVC, resin, etc.

Technical Data

Note:

All data provided is for guidance only and may be varied by the properties of materials.

We reserve the right to modify the design without notice.
