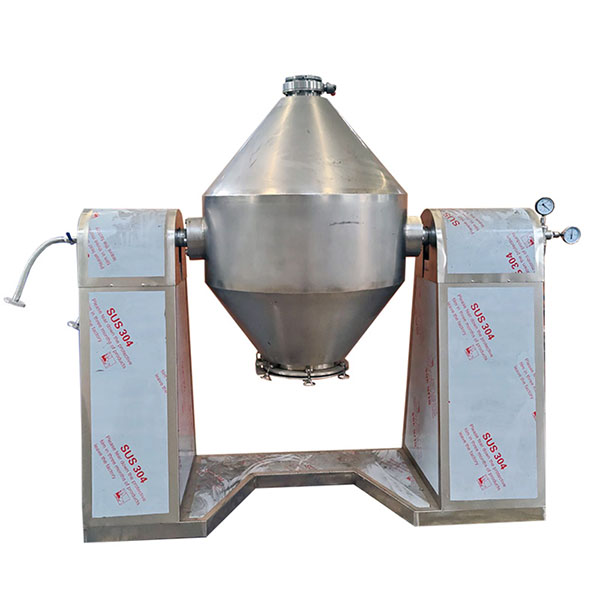

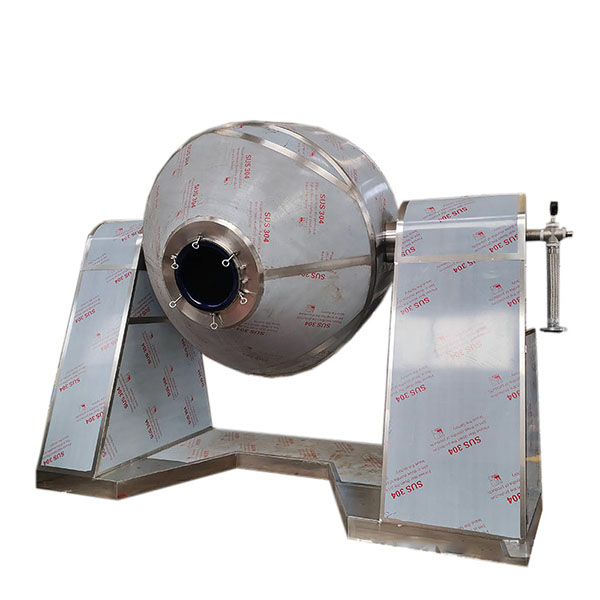

Rotary Cone Vacuum Dryer
Product DescriptionThe Rotary cone vacuum dryer is a conductive heat transfer dryer that works under the vacuum state. it is suitable for drying heat-sensitive powder and granular materialsWorking Pri...
Product Description
The Rotary cone vacuum dryer is a conductive heat transfer dryer that works under the vacuum state. it is suitable for drying heat-sensitive powder and granular materials
Working Principle

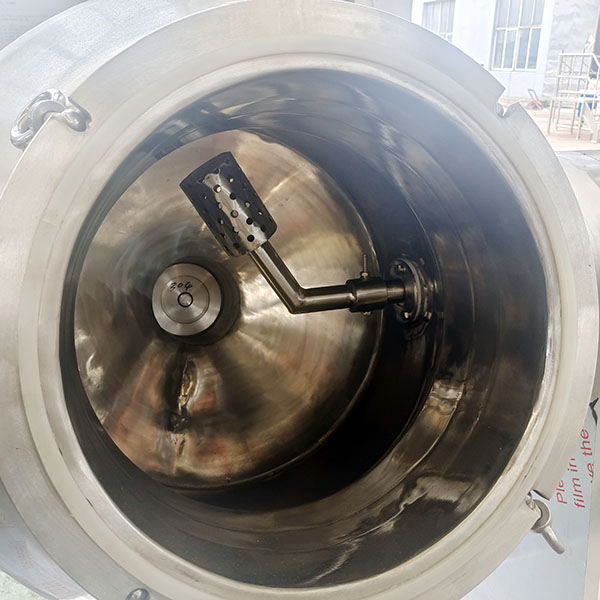

The heat comes into contact with the wet material on the inner wall of the tank. The water evaporates after the wet material absorbs heat. the rotation of the barrel body makes the material constantly turn up and down. The moisture is vaporized, and pumped out by the vacuum pump.
Features and Benefits
Suitable for crystal water and materials that require solvent recovery
Especially for drying heat-sensitive materials.
The Jacket can be heated by hot water steam or thermal oil.
Low-speed rotation and the shape of the crystal will not be broken.
Typical Application
Mixing and drying heat-sensitive, oxidized, volatile, toxic and crystal materials.
Technical Data
Model | SZG-100 | SZG-500 | SZG-1000 | SZG-1500 | SZG-2000 | SZG-3000 |
Total volume (L) | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
Working volume (L) | 50 | 250 | 500 | 750 | 1000 | 1500 |
Heating area (M2) | 1.16 | 2.63 | 4.61 | 5.58 | 7.5 | 10.2 |
Motor power (kw) | 0.75 | 2.2 | 4 | 4 | 5.5 | 7.5 |
Barrel pressure (Mpa) | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 | ~0.1 ~0.15 |
Jacket pressure (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Working temperature (℃) | 35 -150 | 35 -150 | 35 -150 | 35 -150 | 35 -150 | 35 -150 |
Overall size (mm) | 2160×800×1700 | 2350×800×2100 | 2860×1300×2650 | 3060×1300×2750 | 3060×1300×2750 | 3700×1600×3400 |
Gross weight (kg) | 800 | 1200 | 2800 | 3300 | 3300 | 5800 |
Note:
Customized temperature and batch capacity according to user’s requirement.
