Cursh Machine
Product DescriptionThe crushing machine is used for the pre-grinding of large products or deagglomerating large lumps before feeding the material into a universal mill or air classifier mill for fine...
Product Description

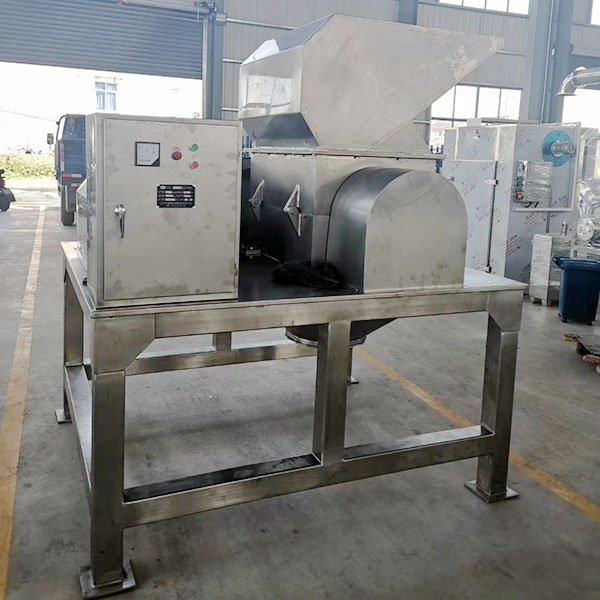

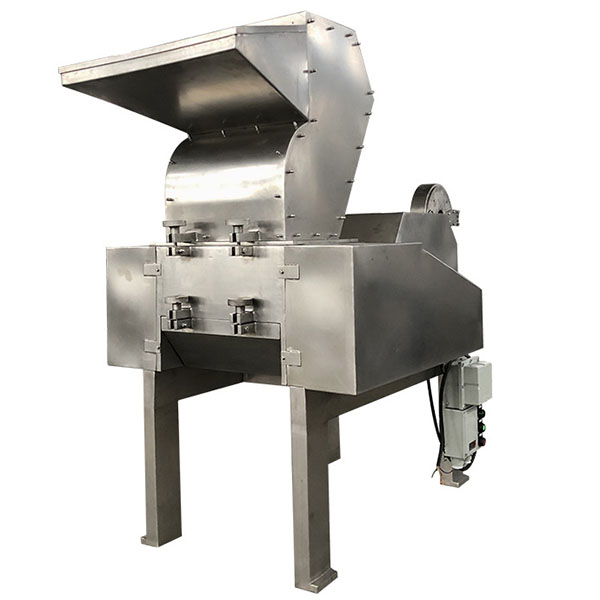

The crushing machine is used for the pre-grinding of large products or deagglomerating large lumps before feeding the material into a universal mill or air classifier mill for fine grinding.
Working Principle
The material to be ground is fed into the mill by gravity, cut between the rotating and stationary blades, and then discharged through the screen at the bottom part of the housing. particle sizes are reached by adjusting of cutting blade gap and screen opening size.
Features and Benefits
Capable of fine grinding to 1mm.
Particle size can be adjusted by mesh size and blade gap.
Variable types of cutting blades for different materials
Easy access for simple cleaning and maintenance.

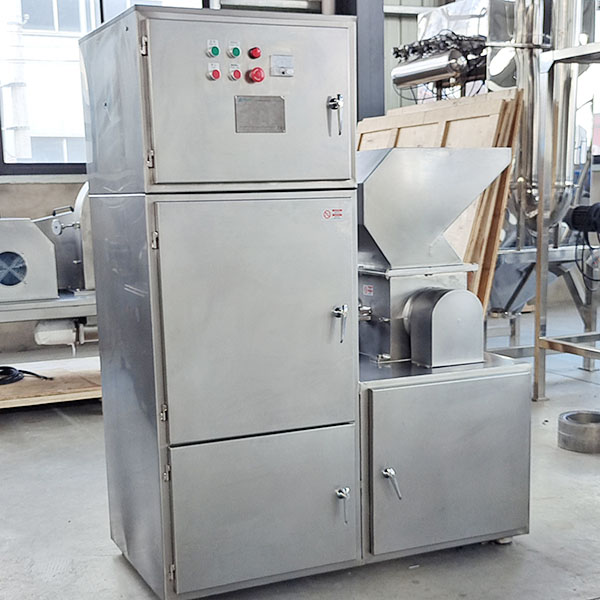

Dust removal collector minimum working dusty.
Sanitary stainless construction meets the requirement of GMP.
Typical Application
Pharmaceutical, Food, and Chemical industries preceding the process of fine-grinding
Technical Data
Model | Capacity (kg/h) | Input Size (mm) | Output size (mm) | power (kw) | Speed(r/min) | Dimension (mm) | Weight (kg） |
CM-200 | 50-200 | ≤120 | 0.5 ~ 20 | 4 | ~860 | 1000×580×1350 | 220 |
CM-300 | 80-300 | ≤120 | 0.5 ~ 20 | 5 | ~700 | 1100×680×1350 | 300 |
CM-400 | 100-800 | ≤400 | 0.5 ~ 20 | 7.5 | ~700 | 1200×780×1350 | 430 |
CM-600 | 500-1500 | ≤600 | 1 ~ 20 | 15 | ~730 | 1300×1000×1550 | 750 |
CM-800 | 600-3000 | ≤800 | 2 ~ 20 | 30 | ~560 | 1850×1600×2150 | 900 |
Note:
All data provided is for guidance only and may be varied by the properties of materials.
We reserve the right to modify the design without notice.
